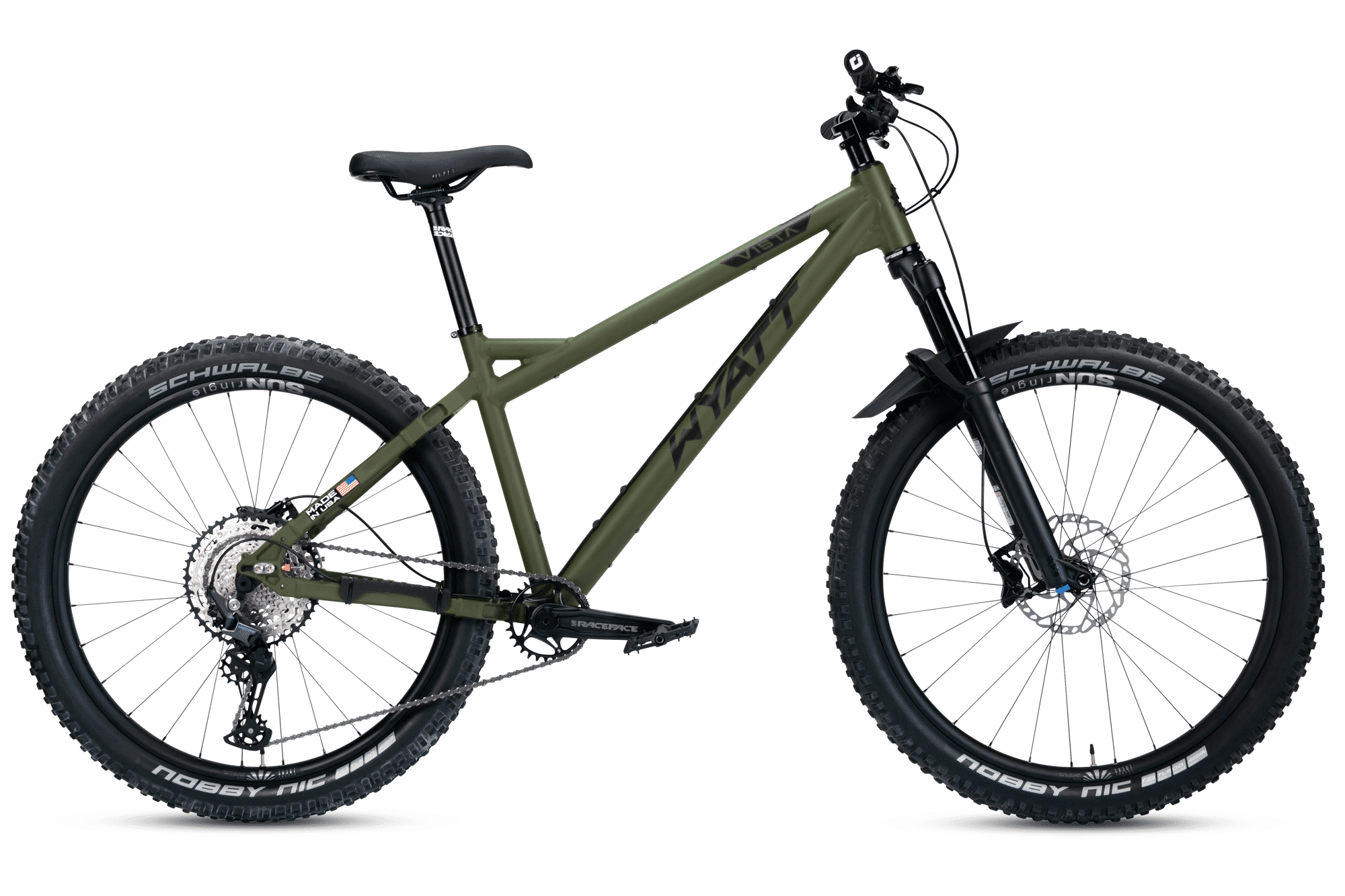

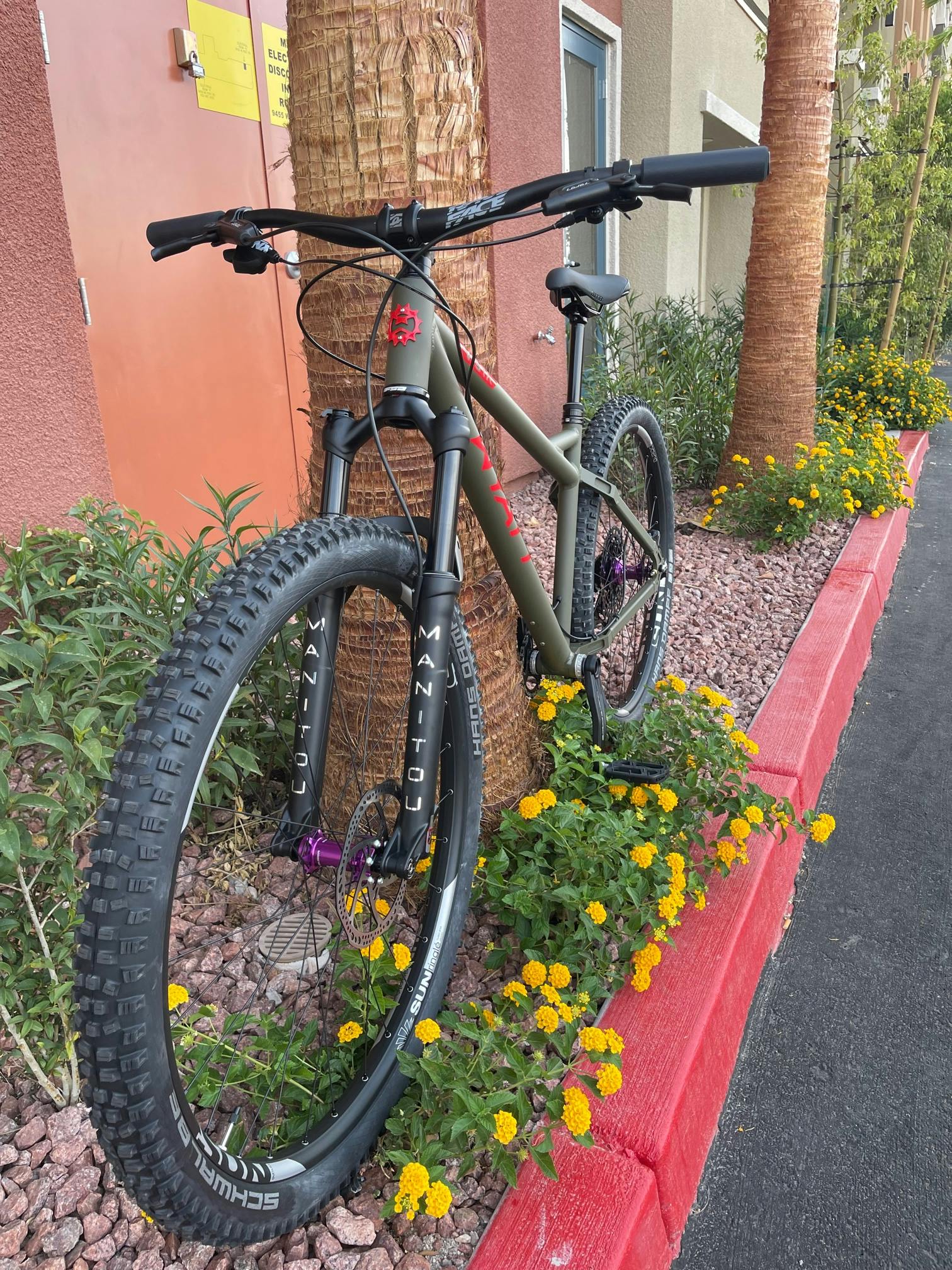

Vista is our take on what a hardtail mountain bike should be…aggressive, fast, and fun! Vista is an American-made mountain bike with modern trail geometry, plus sized tires, and burly tubing. Designed as a mesh between a trail bike and dirt jump bike, the Vista doesn’t feel out of place stopping at the pump track on the way home from a trail ride. The Vista’s roomy cockpit is made for short stems and wide bars for better control on switchbacks and rock gardens. The slack head tube angle, low bottom bracket, and optimized chain stay lengths make for a balanced ride to keep you feeling confident on the steep downhill sections or climbing that daunting hill.
Key Features
- 6061-T6 American-made aluminum tubing
- Chain stay and seat stay yokes
- Sliding dropouts
- Thru axles
- Threaded bottom bracket
- External cable routing
- Dropper post compatible
- Tubeless wheels/tires
- Water bottle mounts
- Rear rack mounts
- Low standover height
Tire Size Compatibility
- 27.5+ (Max 2.8)
- 29er (Max 2.5)
A new design
We’ve taken a different approach to frame design by using oversized American-made 6061 tubing up front and rectangular tubing in the rear, matted to CNC’d chain stay and seat stay yokes. This burly design reduces frame flex, improves torsional compliance, and enhances power transfer from each pedal stroke, while giving our bikes the unique aggressive look that we are becoming known for. The incorporation of CNC’d yokes also allows our frames to have greater tire and chain ring clearance, while creating stronger weld joints due to a more precise manufacturing process.
Build Kit
Frameset | |
Frame | American-made 6061-T6 Aluminum |
Fork | Manitou Machete 120mm |
Dropouts | 6061-T6 Sliders, 20mm adjustable, 148x12mm (Made in USA) |
Wheelset | 27.5 SunRingle Duroc SD37 |
Tires | Schwalbe Nobby Nic 27.5x2.8 |
Tubes | Tubeless |
Drivetrain | Shimano Deore 12sp M6100 |
Crank | RaceFace Ride, 170mm Arms |
Chainring | Race Face DM Narrow Wide Steel 30t |
Bottom Bracket | Race Face Team XC 73mm Threaded |
Saddle | WTB Speed Comp |
Seatpost | 30.9mm |
Handlebar | ProTaper A25, 31.8 |
Grips | ODI Reflex |
Stem | ProTaper MTB 40mm, 31.8 |
Headset | FSA Orbit ITA - tapered |
Brakeset | Shimano MT410 2-Piston |
Rotors | 180mm front / 160mm rear |
Pedals | Your choice |
Weight | Medium - 30 lbs |
Weight limit | 350lbs |
Frame Specs
Frame Material: 6061-T6 aluminum (Made in USA)
Bottom Bracket: 73mm Threaded
Chainline: 52mm
Max Chainring: 36t
Front Spacing: 15x110mm
Rear Spacing: 12 x 148mm
Dropouts: Left Side: Sliding, Post Mount, 160 Rotor, 12 mm | Right Side: Sliding, Hanger, M12 x 1.5 | T45 bolts (20nm)
Rear Axle: 148 x M12 x 1.5, Rear
Headtube: 50.8mm OD / 44mm ID
Seat Tube: 34.9mm OD / 30.9mm ID (31.6mm ID if purchased before Jan 1, 2023)
Seat Post Clamp Diameter: 34.9mm
Recommended Tire Size: 27.5 x 2.8″ / 29 x 2.25″
Max Tire Size: 27.5 x 2.8″ / 29 x 2.5″
Water Bottle Mounts: 2 locations (above and below down tube)
Rack Mounts: Located on rear dropouts (Special seat clamp required for seat tube mount)
Weight: 5.5 lbs (with sliders)
Geometry
Bike Size | Small | Medium | Large | X-Large | |
---|---|---|---|---|---|
Recommended Rider Height | 5'3"-5'7" | 5'8"-5'11" | 6'0"-6'3" | 6'4"-6'7" | |
A | Effective Top Tube Length | 618mm | 648mm | 680mm | 710mm |
B | Reach | 418mm | 446mm | 475mm | 505mm |
C | Stack | 645mm | 654mm | 664mm | 674mm |
D | Seat Tube Length | 400mm | 440mm | 490mm | 540mm |
E | Seat Tube Angle | 73° | 73° | 73° | 73° |
F | Head Tube Length | 115mm | 125mm | 135mm | 135mm |
G | Head Tube Angle | 66° | 66° | 66° | 66° |
H | Chainstay Length | 440-460mm | 440-460mm | 440-460mm | 440-460mm |
J | Stand Over Height | 28" | 29" | 30" | 32" |
K | Bottom Bracket Drop | 48mm | 48mm | 48mm | 48mm |
L | Bottom Bracket Height | 317mm | 317mm | 317mm | 317mm |
M | Wheelbase | 1166-1186mm/1161-1181mm | 1198-1218mm/1192-1212mm | 1231-1251mm/1225-1245mm | 1266-1286mm/1260-1270mm |
N | Front Center | 741mm/735mm | 772mm/766mm | 805mm/798mm | 834mm/827mm |
O | Fork Length | 551mm | 551mm | 551mm | 551mm |
P | Fork Offset | 51mm/45mm | 51mm/45mm | 51mm/45mm | 51mm/45mm |
-Geometry without suspension sag
-Standover is measured 70mm from the front of bottom bracket center
